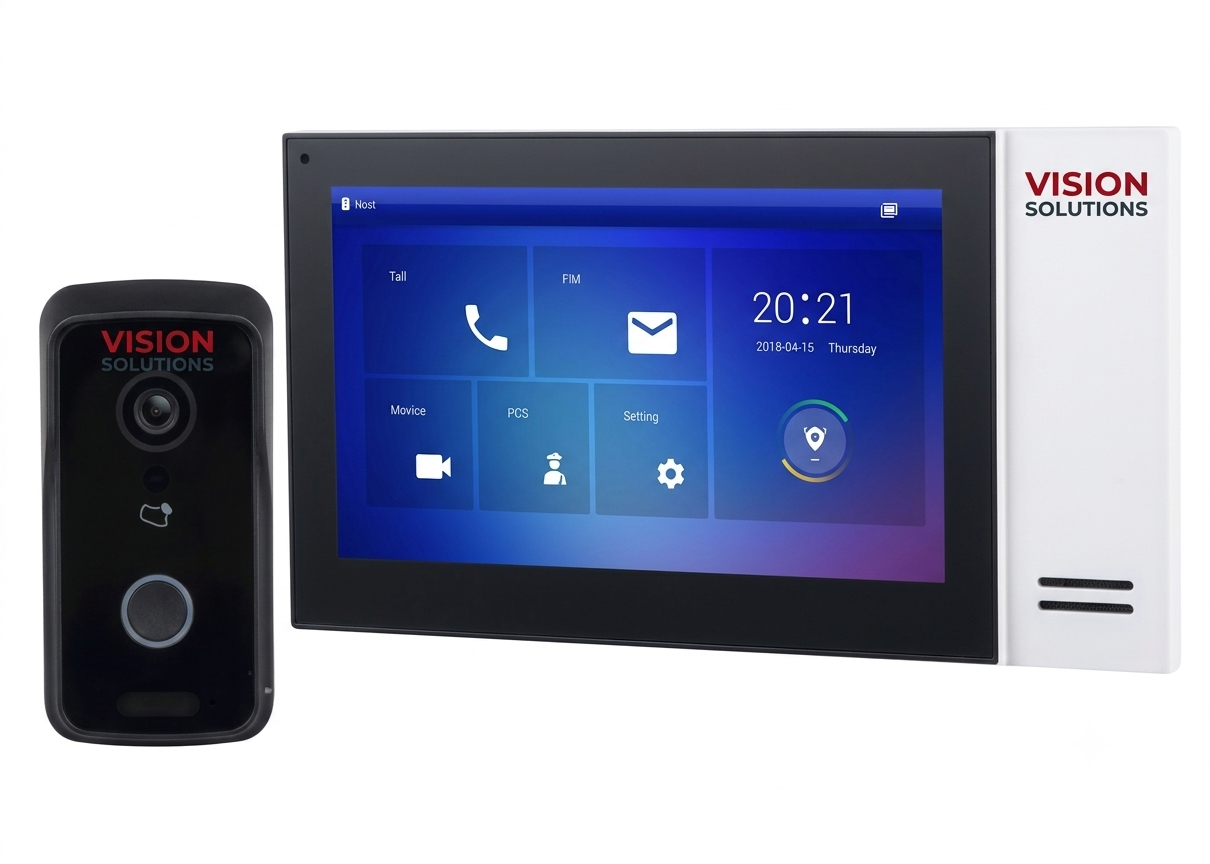

CP-UVK-711M
IP Villa Door Station & Indoor Monitor
- IP Villa Door Station
- High definition camera; WDR
- IP65(Silicone sealant is needed. For details, see the quick start guide.)
- Supports auto IR illumination and D/N
- Card/app remote/indoor monitor unlock
- Supports two-way voice call, support calls between door stations and app
- 10,000 cards
- Tamper Alarm
- Support standard PoE power supply
- Control two locks
- IPC surveillance
- Alarm integration
- High performance
- Embedded 8GB SD card
- Support standard PoE
- Quick configuration without computers
| Communication Mode | Full digital |
| Display | 7-inch TFT screen (17.78cm) |
| Audio Input | 1 channel all-direction microphone |
| Audio Output | Built-in 1.5W loudspeaker |
| IR | Auto IR |
| Power Source | 12V DC 1A Standard PoE – IP Villa Door Station ; PoE or DC 12V – Indoor Monitor |
| Power Consumption | IP Villa Door Station: Standby≤1W, working≤5W ; Indoor Monitor : Standby≤4W, work≤6W |
| Operating Temperature | -30°C to +60°C (-20°F to +60°F ) – IP Villa Door Station ; -10°C to +55°C (+14°F to +131°F) – Indoor Monitor |
| Humidity | 10%RH–95%RH |
| Dimension | 135mm×70.4mm×34.4mm (IP Villa Door) ; 119.6 mm × 221.5 mm × 21.5 mm (Indoor Monitor) |
| IP Rating | IP65 (silicone sealant is needed, see the quick start guide) |
| Casing | PC + ABS |
| Weight | 326 g (IP Villa Door) ; 0.35Kg (Indoor Monitor) |
