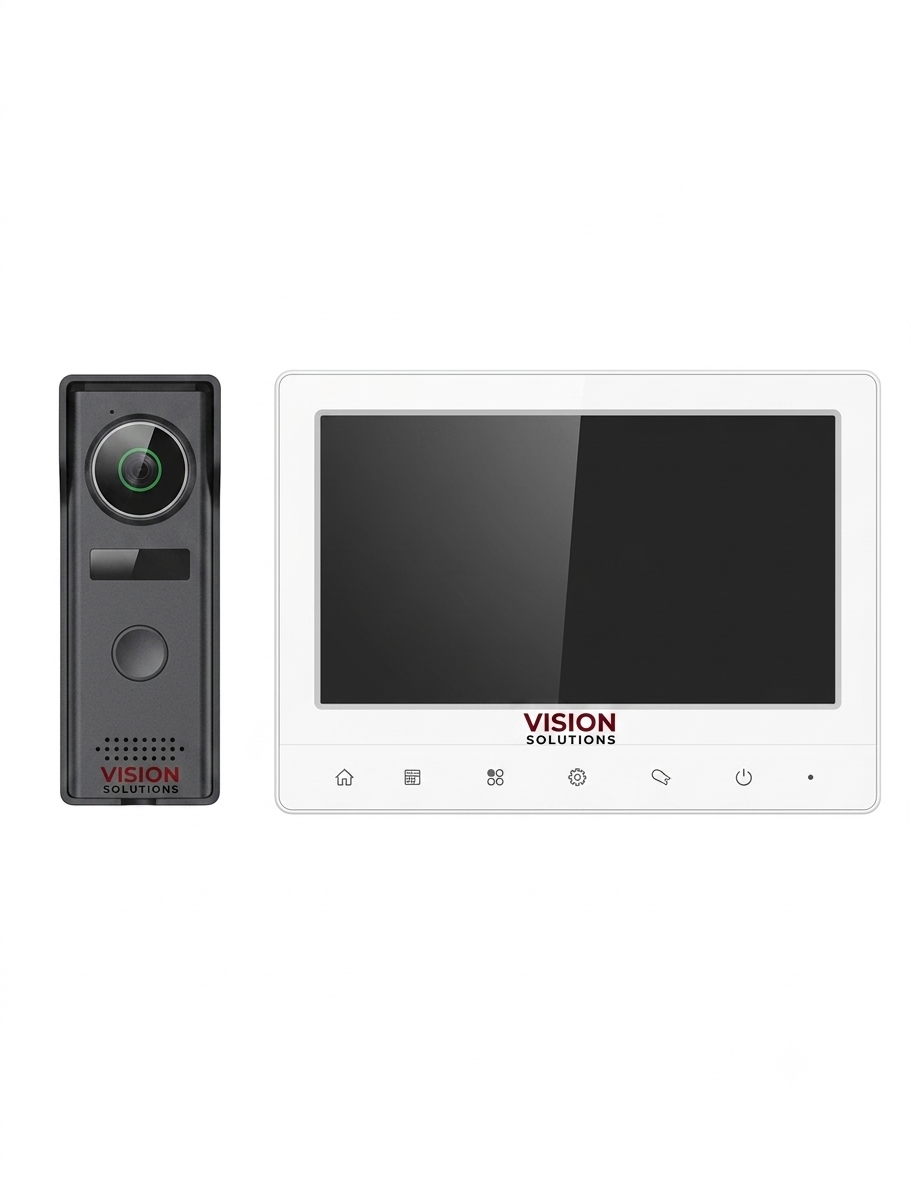

CP-UVK-701MTA
Video Intercom Kit with Memory
- 7″ TFT screen (17.78cm)
- Video intercom function: Unlock, voice call, video call, volume adjustment, doorway monitoring
- System Capacity: 2 door stations + 3 indoor monitors
- Multiple bell sounds
- Supports digital wide dynamic range (DWDR)
- In-Built Memory (200 Snapshots)
| Communication Mode | Analog |
| Display | 7.0″ TFT (17.78cm) |
| Audio Input | 1 channel to the microphone; pickup distance 0.5 m |
| Audio Output | 1 channel to the speaker |
| IR | Auto IR |
| Power Source | Powered by indoor monitor (Outdoor) ; DC 12V/2A (Monitor) |
| Power Consumption | ≤ 1W (standby) ; ≤ 3W (working) – Outdoor ; ≤ 2W (standby) ≤ 5W (working) – Monitor |
| Operating Temperature | -30°C to +60°C (-22°F to +140°F) – Outdoor ; -10°C to +55°C (+14°F to +131°F) – Monitor |
| Humidity | 10%RH–95%RH |
| Dimension | 131.45 mm × 46.00 mm × 33.80 mm (outdoor) ; 133.90mm × 182.70mm × 17.70mm (Monitor) |
| IP Rating | IP66 (Apply silicon sealant to gaps between the device and the wall. Liquid sodium silicate is recommended. For details, see the quick start guide). |
| Casing | PC + ABS |
| Weight | 0.18 kg (Outdoor) ; 0.25kg (Monitor) |
