Description

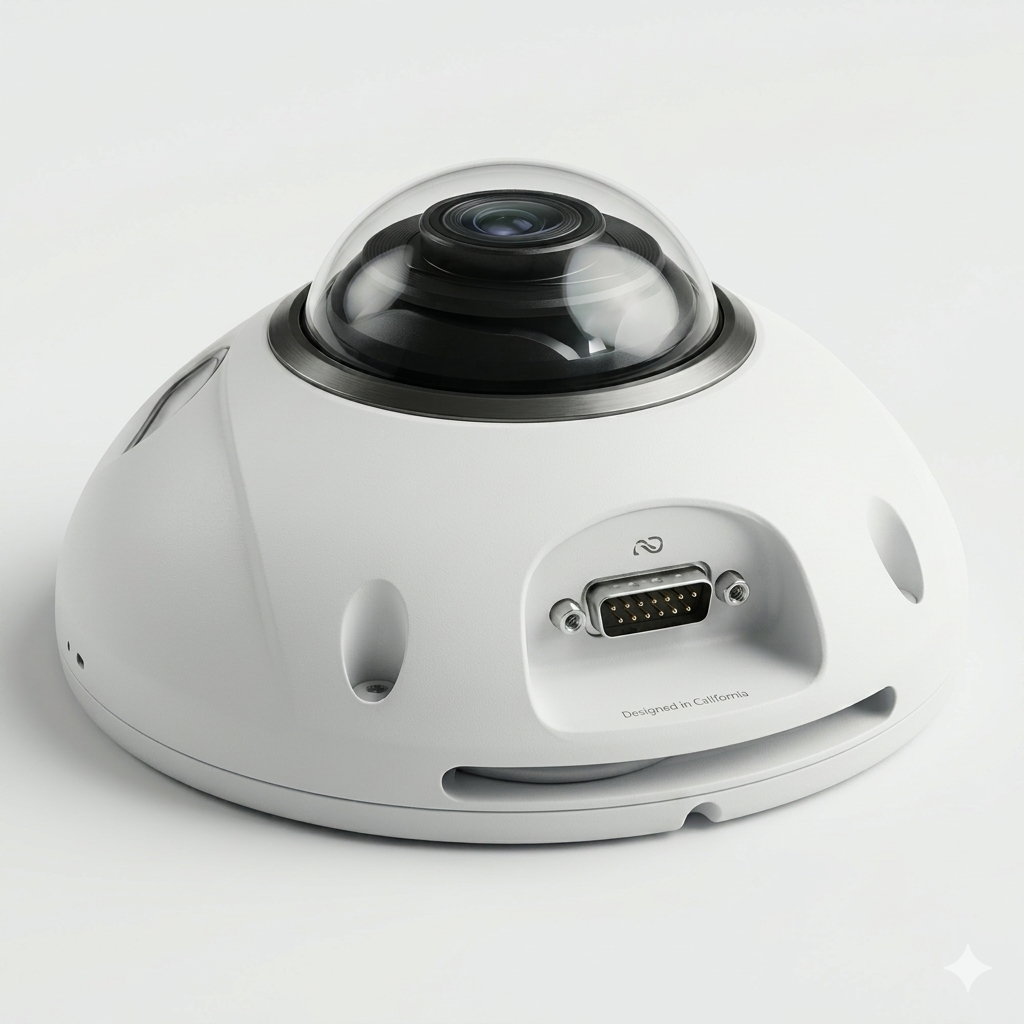

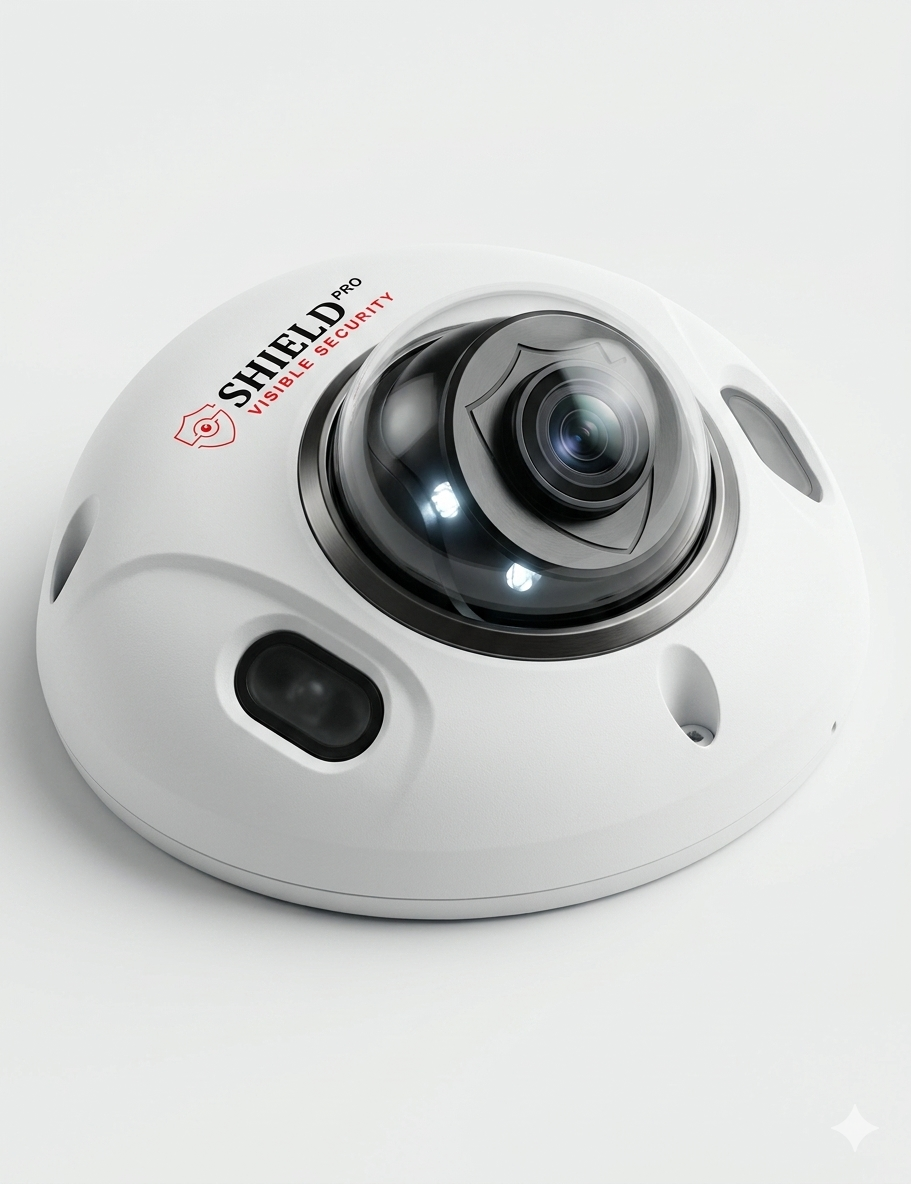

Shield Pro-Visible Security 2MP Network IR Wedge Camera
The Shield Pro-Visible Security 2MP Network IR Wedge Camera is designed for high-security applications where durability, performance, and reliability are essential. Equipped with a powerful 1/2.8″ 2MP Progressive Scan CMOS sensor, the camera delivers crystal-clear Full HD 1080P video at up to 30fps for detailed surveillance and evidence collection.
Its compact wedge-style design is ideal for transportation systems, schools, commercial buildings, warehouses, industrial facilities, public infrastructure, and vandal-prone environments. The built-in microphone enables synchronized audio recording, while advanced Smart IR technology provides up to 30 meters of night vision for reliable monitoring even in complete darkness.
The camera supports H.265 and H.264 video compression technologies to reduce storage and bandwidth consumption without compromising image quality. Advanced imaging features such as 120dB True WDR, 3D Noise Reduction, Backlight Compensation, Highlight Compensation, and Intelligent Video Analytics ensure superior performance in challenging lighting conditions.
Built with IP67 weatherproof and IK10 vandal-resistant protection, this camera is engineered to withstand harsh environmental conditions and physical impact. The integrated Micro SD card slot supports up to 512GB local storage, while PoE support simplifies installation by transmitting power and data through a single cable.
Key Features
- 2MP Full HD 1080P Resolution
- Built-in Microphone
- 30 Meter Smart IR Night Vision
- 120dB True WDR Technology
- H.265 / H.264 Video Compression
- Triple Stream Support
- Face Detection & Intelligent Motion Detection
- Tripwire & Intrusion Detection
- Micro SD Card Support up to 512GB
- Power over Ethernet (PoE)
- IP67 Weatherproof Protection
- IK10 Vandal-Resistant Metal Housing
- ONVIF Compatible
- Remote Monitoring & Playback
- Suitable for Commercial & Industrial Security Applications
Specifications
| Specification | Details |
|---|---|
| Camera Type | Network IR Wedge Camera |
| Image Sensor | 1/2.8″ 2MP Progressive Scan CMOS |
| Resolution | 1920 × 1080 (Full HD) |
| Lens | 2.8mm Fixed Lens |
| Optional Lens | 3.6mm |
| Lens Mount | M12 |
| Frame Rate | Up to 30fps |
| Video Compression | H.265, H.264+, H.264, H.264H, H.264B, MJPEG |
| Audio | Built-in Microphone |
| Audio Compression | PCM, G.711a, G.711Mu, G.726, MPEG2-Layer2, G.722.1 |
| Night Vision | Smart IR up to 30 Meters |
| IR LEDs | 2 IR LEDs |
| Viewing Angle | H: 107°, V: 56.3°, D: 126.4° |
| Wide Dynamic Range | 120dB True WDR |
| Noise Reduction | 3D DNR |
| Video Analytics | Face Detection, IMD, Tripwire, Intrusion Detection |
| Storage | Micro SD Card up to 512GB, NAS, SFTP |
| Network Interface | RJ45 10/100 Mbps |
| Protocol Support | ONVIF Profile S/G/T, IPv4, IPv6, HTTPS, RTSP, TCP/IP |
| Power Supply | PoE (IEEE 802.3af) |
| Power Consumption | Less than 4.5W |
| Weatherproof Rating | IP67 |
| Vandal Resistance | IK10 |
| Operating Temperature | -40°C to +70°C |
| Housing Material | Metal |
| Dimensions | 64.8 × 111 mm |
| Weight | 450g |
| Installation | Wall / Vehicle / Ceiling Mount |
| Application | Transportation, Industrial Security, Commercial Buildings, Warehouses, Public Infrastructure |
